Professional transformer winding automation equipment manufacturer
-

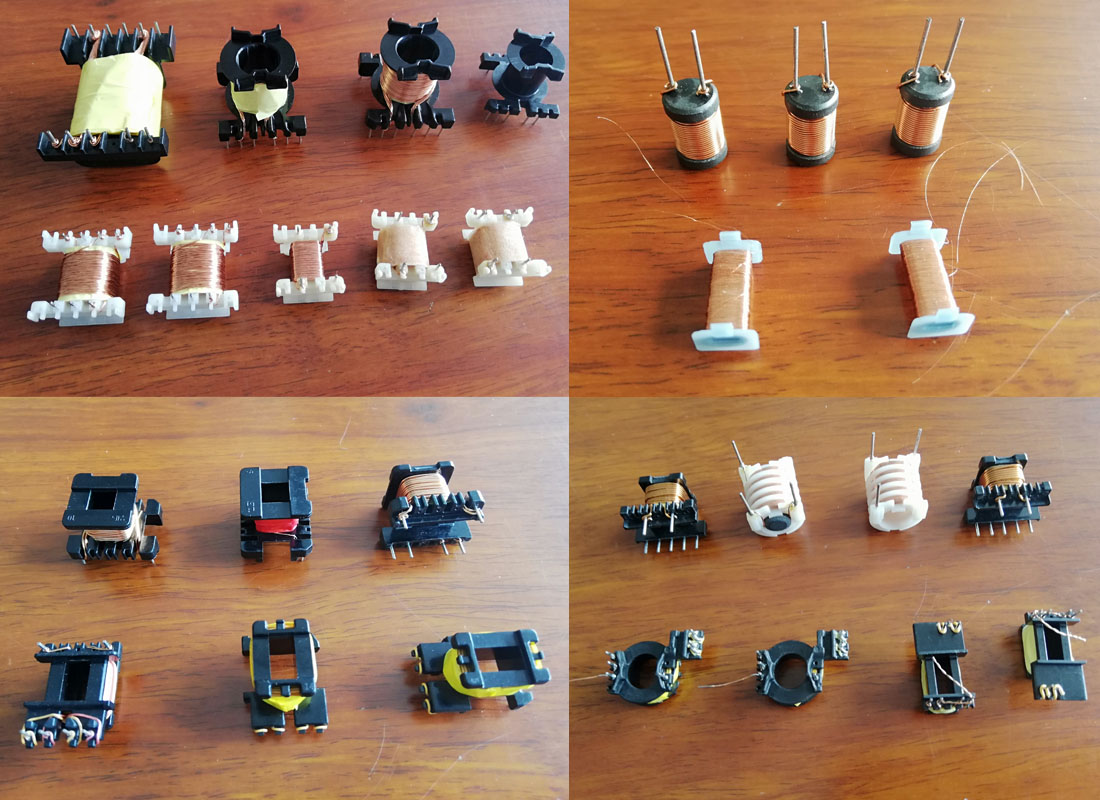

A solenoid type coil, a switching power supply coil, a relay coil, an ignition coil, and the like do not require a rubberized skeleton coil.
High-precision, high-volume winding for ordinary skeleton coils.
1. Motion controller: six-axis CNC precision control system
2. Solenoid valve: SMC
3, servo motor: Japan rich soil / Panasonic
4, guide rail, ball screw: Taiwan TBI/THK
5, cylinder: SMC / Yadeke
| Number of spindles | 12 |
| Spindle spacing | 46mm |
| Spindle maximum number of revolutions | 12,000 rpm |
| Spindle servo motor power | 750W/1500W |
| Optional | X: 400WY: 400WZ400WA: 400W |
| Spindle quick clamp device inner diameter | Standard 8mm special 10mm |
| Wire diameter range | Φ0.02-φ0.75 (>φ0.75) |
| Optional | Φ0.4 or more wire diameter needs to add corresponding accessories |
| Tape width range | 3mm-18mm |
| Maximum winding frame outer diameter | 25mm |
| Guide needle movement range | X: 110mmY: 108mmZ: 120mmA: 100mm |
| Spindle positioning accuracy | ±0.1° |
| Mobile positioning accuracy | 0.01mm |
| Foot angle | Standard 0°, 90° |
| Control System | Six-axis CNC precision software control |
| Air pressure | 0.5-0.65MPa |
| voltage | AC220V/50Hz (AC110V/60Hz) |
| Total power | 2000W/2700W |
| equipment weight | 600Kg |
| Equipment size | 1200(L).900(W).1500(H) |
| Automatic loading can be added | Automatic stranding, pneumatic scissors, simple cutter, automatic rubberizing device, double wire winding, four wire winding. |
